Thread with Profile Falloff Calculator

This calculator generates a Python script that draws a threaded surface with a profile falloff, which can be used to model screws, nuts, screw-caps, etc.

A thread profile can be represented by a simple 4-segment broken line shown on the diagram above in gold. It is fully described by its outer and inner radii (R and r) and the heights of its 4 line segments (h1, h2, h3 and h4).

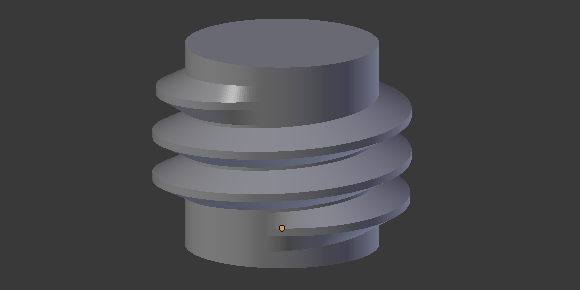

A full thread can be modeled in Blender by applying the Screw modifier to the profile. However, this approach will only produce satisfactory results with nuts but not bolts. The latter require a profile falloff -- the outer radius of the profile needs to become equal to the inner radius at the top and bottom of the thread. This calculator automatically spits out a Python script which generates a threaded surface with a smooth profile falloff based on your profile parameters, as shown on the image above.

Thread Profile Parameters
ParameterSymbolValue
Vertices Per LoopNv
Number of LoopsNl
Outer RadiusR
Inner Radiusr
Height 1h1
Height 2h2
Height 3h3
Height 4h4
Profile Falloff RateF

Profile Generating Script

Related: How to Model Threaded Surfaces in Blender
